100_6935.JPG Hi Ryan. I had the standard Lancair supplied Ram Air kit, c2007. The angle on mine looks to be about what you sketched on your chromed inlet. On another pic (bad pic), I would have guessed it was on plane with the forward edge of the cowling... parallel to firewall??? 100_6932.JPG Has ...

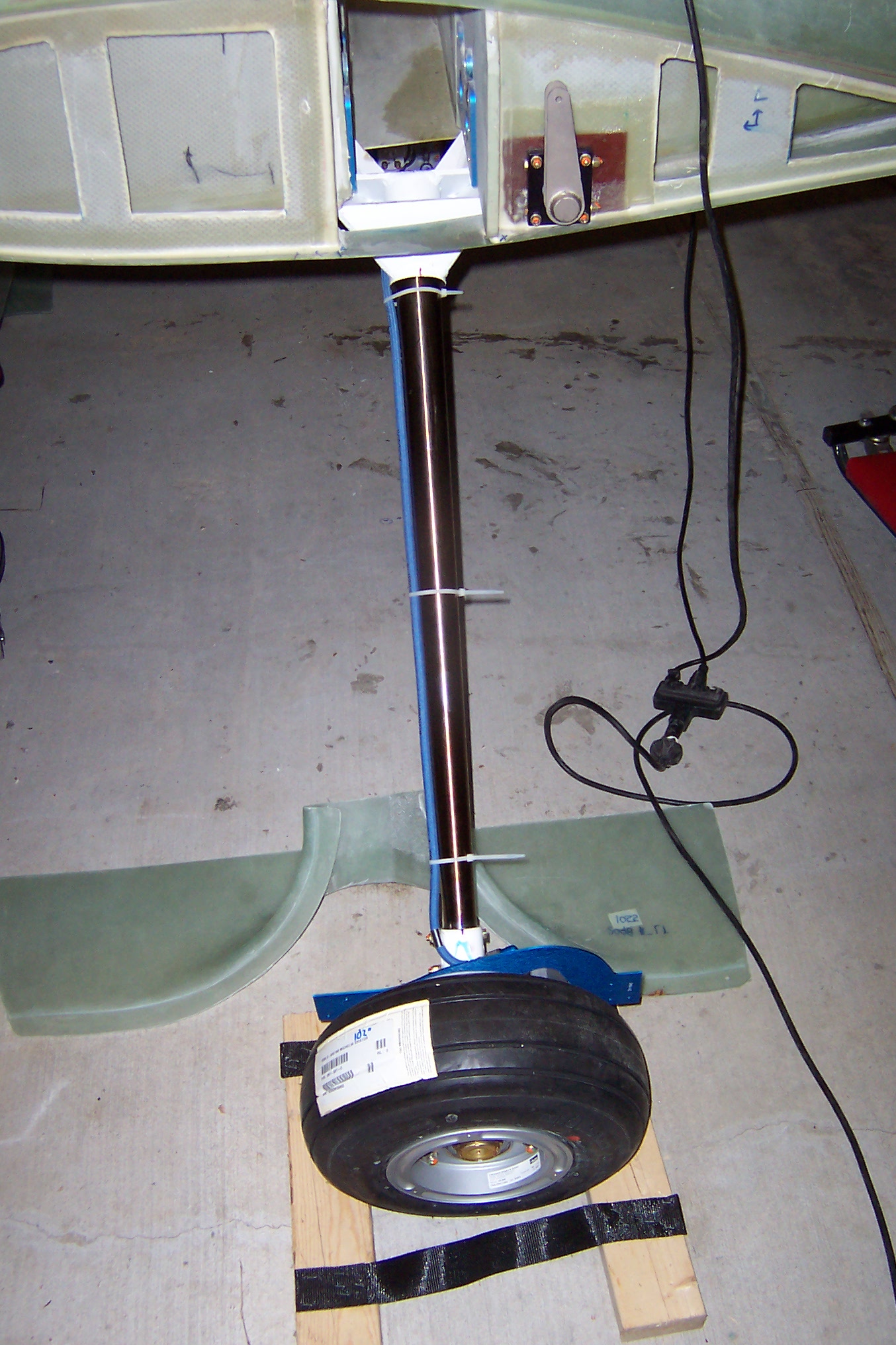

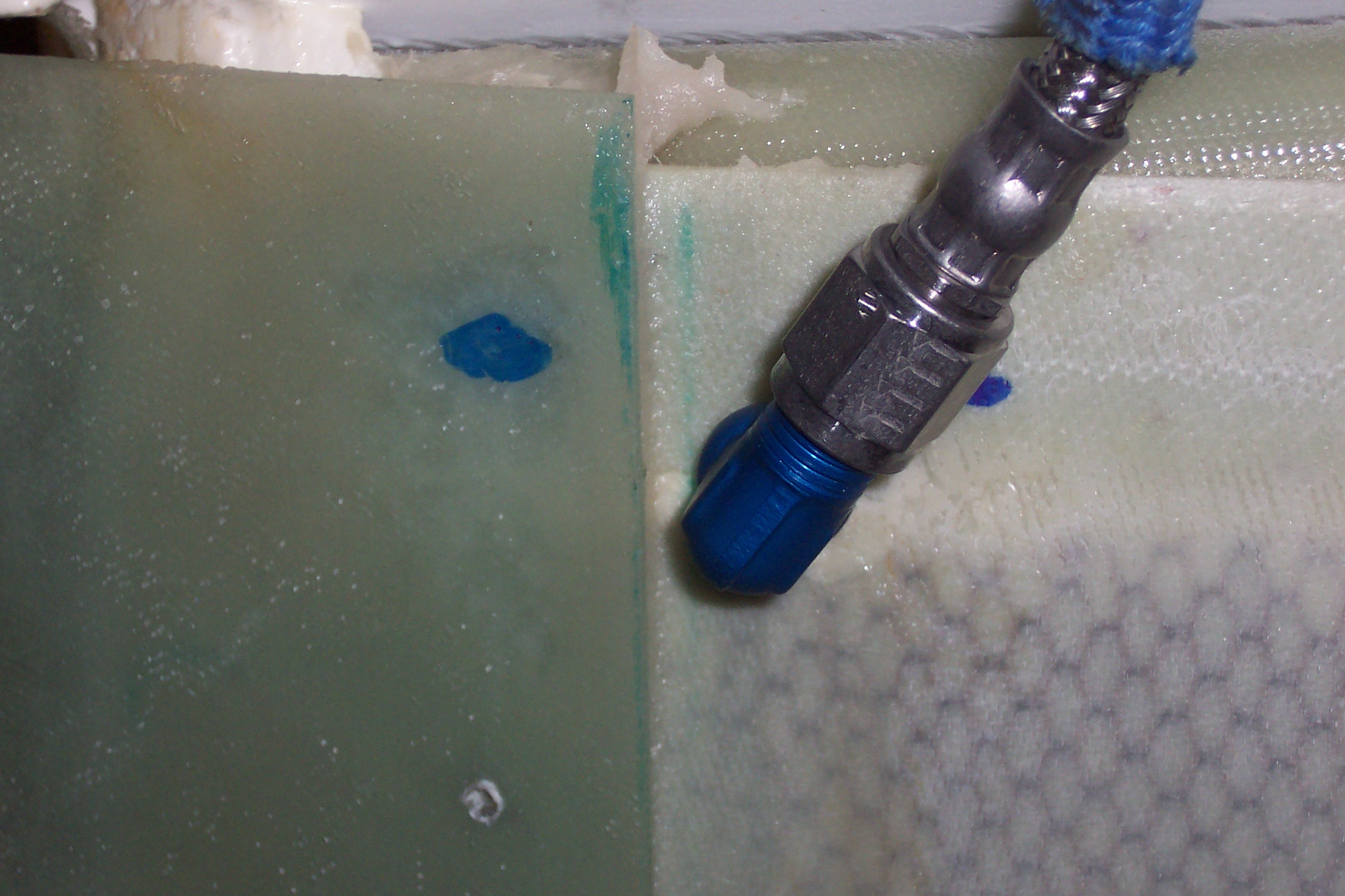

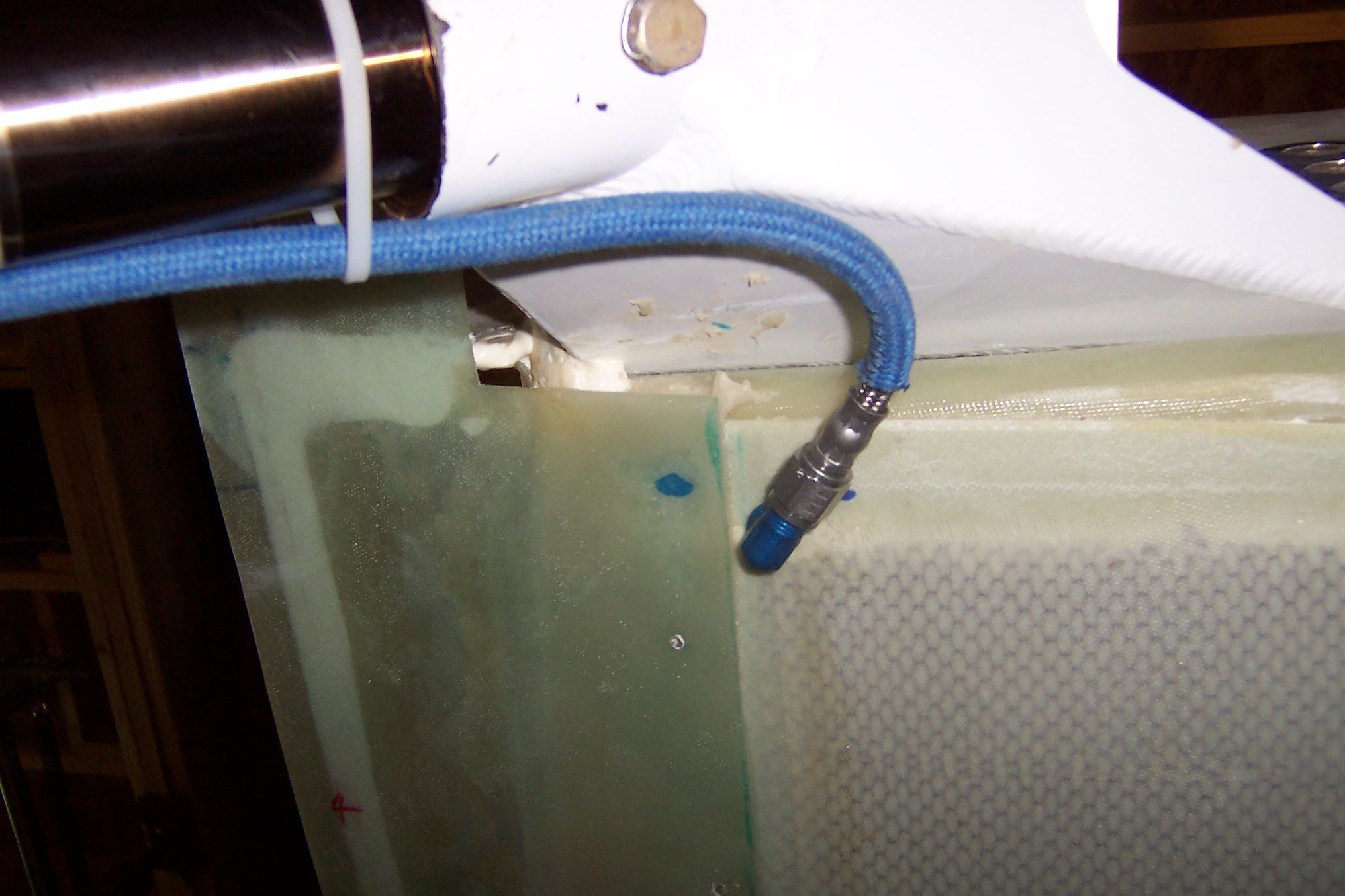

I used SS braided hose for brake lines on the ES I built. If memory serves me, those lines were supplied in the kit by Lancair. Circa 2007.

Aluminum tubing inside the fuselage to firewall, then nynaflow from there to master cylinders.

Gordon

Lou... I have one. I sent you a PM just now.

Gordon Porter

Doug, there are several ES POHs in this thread from 2022

Gordon


https://www.lancairowners.com/forums/es ... -checklist

Hello all LOBO-ers! With a lot of thought and even more sadness, I have decided to sell my beautiful ES. N144GP. Why? Just not flying enough. That leads to an endless spiral of not being proficient enough to launch into x-country conditions that never bothered me before. Cancelled flights, less prof...

Never had a problem with the location.

Pic added using the new larger file size process!

Hi Ryan. Here is a link to my build log. Feel free to nose around. http://www.mykitlog.com/users/display_log.php?user=n144gp&project=471&category=11847&log=244062&row=101 And, I attached a pic of the OAT probe in the right wing tip. Tip is removed and laying upside down in this pic. ...

My G3X only needed one OAT probe. I put it under R wing tip. You could do the same on the L side.

Garmin requires shielded cable... that was fun!

Dave, I sent you a PM as well:

Hi Dave. If you give me your e-mail address I can send you the chapter from the ES manual that describes what George recommended.

I can't seem to attach the PDF file directly to the forum.

Gordon
